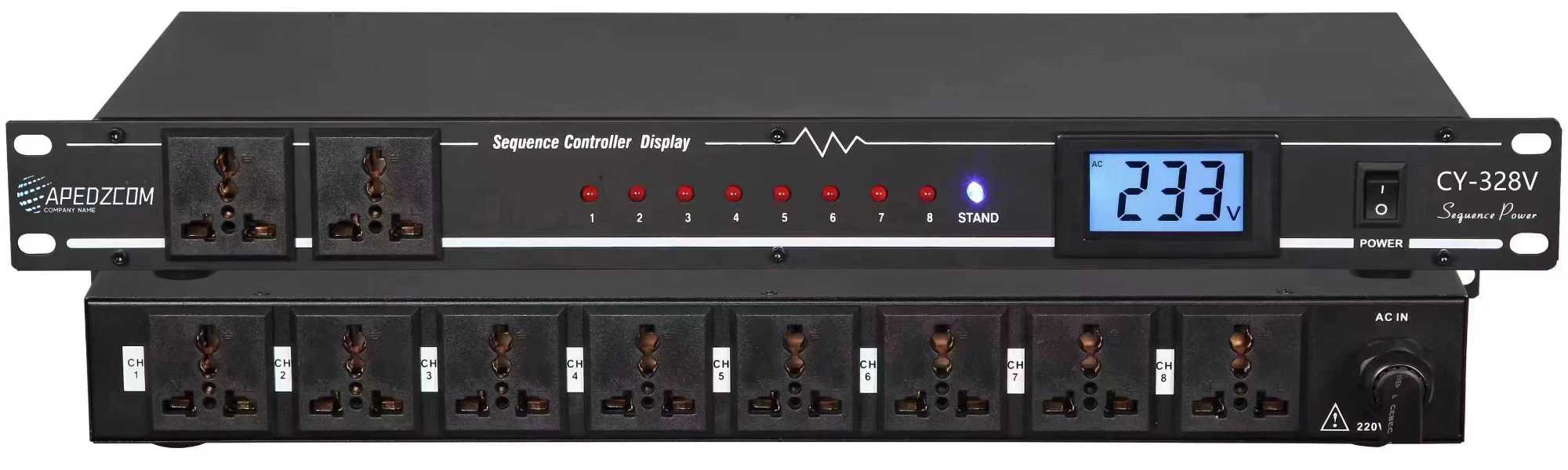

Power sequencer

● Panel color: iron black;● Power input conditions (single-phase 3-wire): AC 90-260V 50-60HZ two-phase (three wires: neutral, live, ground);● Number of channels: 8-channel universal socket relay controlled;● Maximum power per relay-controlled output/total power (reactive power): 2200W/7000W maximum reactive power;● Output power socket specification: flame-retardant ABS material, can withstand a maximum current of 10A, phosphor bronze material, standard American socket;● Features: (1) Sequential power-on and reverse sequential power-off; (2) PASS key allows all channels to be turned on simultaneously; (3) Accurate voltage display; (4) Overcurrent protection; (5) Independent channel switch on the panel;● Switch interval/timing per channel: default 1 second;● Output relay contact current: 30A 277VAC;● Circuit board specification: double-sided fiber board, main power wiring reinforced and thickened;● Power supply specification: built-in switch power supply, suitable for global voltage AC 90-260V 50-60HZ;● Main cable specification: 3*4 mm² cable, total length 1.5 meters;● Switch type: rocker switch;● Function display voltage meter type: red-green digital tube display voltmeter;● Power purification function (EMI professional power filter): none (optional single or per channel filter);● Short-circuit and overcurrent protection breaker configuration: breaker controls neutral and live wires, overcurrent protection (63A short-circuit protection);● Dimensions: length 480MM * width 185MM * height 46MM (non-standard 1U);● Total weight (including packaging): 3.4KG.
